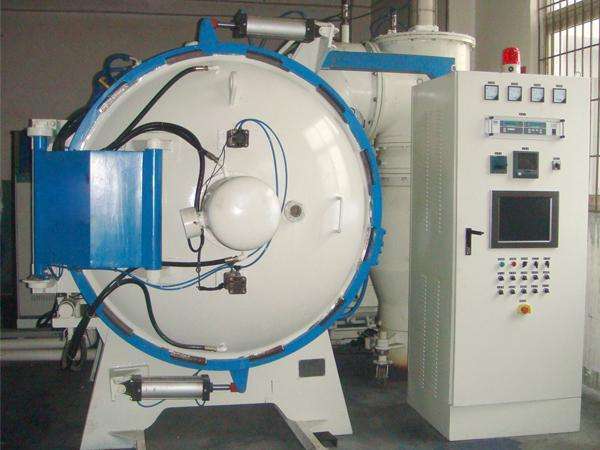

Vacuum diffusion furnace
Vacuum diffusion furnace ultimate vacuum (Pa):
4 × 10-1 or 6 × 10-3
Vacuum diffusion welding purposes:
Vacuum diffusion welding furnace is mainly applied to vacuum diffusion welding of stainless steel, titanium alloy, high temperature alloy, cemented carbide, non-ferrous metals and other materials. Vacuum diffusion welding furnace is composed of the host. Vacuum system. Heating system. Water cooling system. Pneumatic system. Electronic control systems and furnace transport vehicles and other components.

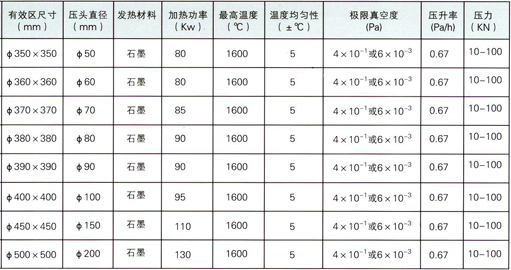

The main types of technical indicators:
