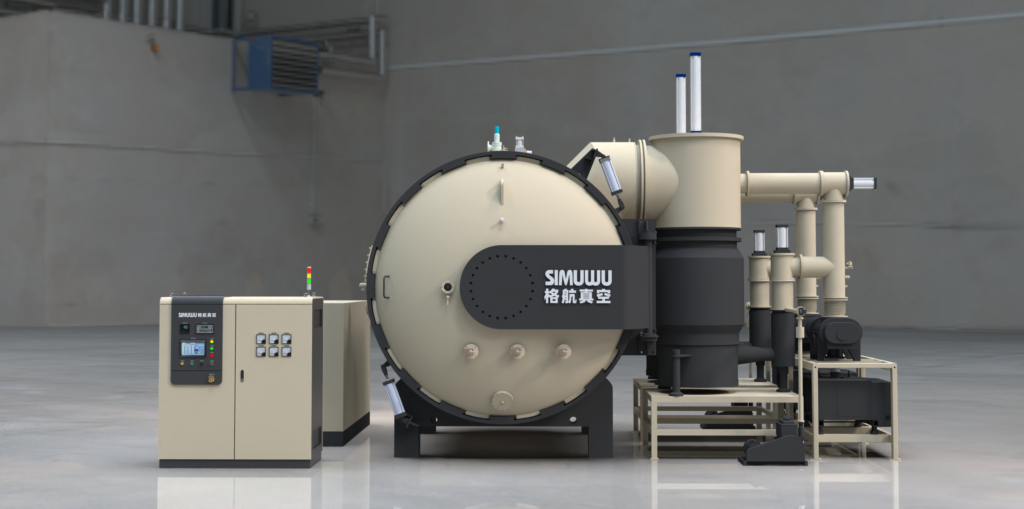

vacuum furnace temperature range

1. Low to Medium Temperature Range (Up to ~1200°C)

• Heating Elements: Metallic resistance alloys like Kanthal (Fe-Cr-Al) or Nichrome (Ni-Cr).

• Characteristics: Cost-effective, good for oxidizing atmospheres (not a factor in vacuum), and easy to form. Vacuum is used here primarily to prevent oxidation of the workload, not necessarily the element.

• Typical Applications:

  • Tempering and aging of metals

  • Annealing of copper, brazing with silver-based alloys

  • Glass-to-metal sealing

  • Outgassing of components

2. High Temperature Range (Up to ~1800°C)

• Heating Elements: Molybdenum (Mo) or Graphite.

• Characteristics:

  • Molybdenum: Excellent strength at high temps, but oxidizes readily. Must be protected by a pure vacuum or hydrogen atmosphere. Commonly used in all-metal hot zones with moly heat shields.

  • Graphite: High heat capacity, resistant to thermal shock, less expensive than refractory metals. Can produce soot and is not compatible with certain materials (e.g., reacts with titanium at high temps).

• Typical Applications:

  • Heat Treating: Hardening of high-speed steels, tool steels, stainless steels, and maraging steels.

  • Brazing: Of aerospace components (nickel-based alloys) and active metals like titanium.

  • Sintering: Of many powder metallurgy parts.

3. Very High to Ultra-High Temperature Range (1800°C to 3000°C+)

• Heating Elements: Tungsten (W) or Graphite.

• Characteristics:

  • Tungsten: The highest melting point of all metals (3422°C). Extremely brittle at room temperature, expensive, and requires very high vacuum to prevent oxidation. Used in specialized high-temp hot zones.

  • Graphite: The most common choice for this range due to its practicality and cost. It sublimates (turns directly to gas) at around 3650°C.

• Typical Applications:

  • Sintering: Of advanced ceramics (e.g., silicon carbide, boron nitride) and refractory metals (tungsten, molybdenum).

  • Chemical Vapor Deposition (CVD) / Crystal Growth: Such as synthetic diamond or silicon carbide production.

  • Carbon-Carbon Composites: Processing and graphitization.

  • High-Temperature Research: Material science testing.

Critical Factors Influencing Temperature & Performance

1. Hot Zone Construction: This is as important as the element itself. It consists of:

   • Heat Shields: Multiple layers of thin metal (Mo, W, Ta) or graphite felt to reflect heat inward and protect the furnace shell.

   • Insulation: Ceramic or graphite-based materials.

   • The design (all-metal vs. graphite) dictates maximum temperature, heating/cooling rates, and vacuum cleanliness.

2. Vacuum Level: Higher temperatures generally require a better vacuum (lower pressure).

   • Low Vacuum (e.g., 10⁻³ to 10⁻¹ mbar): Often sufficient for standard heat treating to prevent oxidation.

   • High/Ultra-High Vacuum (e.g., 10⁻⁶ to 10⁻⁹ mbar): Essential for processing reactive metals (Ti, Zr), very high-temperature operations, or where surface chemistry is critical (e.g., semiconductor work).

3. Cooling Options:

   • Gas Quenching (Nitrogen, Argon, Helium): Allows for rapid cooling under pressure, turning a vacuum furnace into a vacuum oil/gas quench (VOGQ) furnace. This is critical for hardening many alloys.

   • Cooling Rate: Helium cools fastest, then nitrogen, then argon (but helium is expensive).

Typical Applications vs. Temperature

• ~500-800°C: Aging, tempering, annealing of non-ferrous metals.

• ~850-1150°C: Most common range for vacuum heat treating (hardening of tool steels, stainless steels), and many brazing processes.

• ~1200-1450°C: High-temperature brazing, sintering of certain steels and alloys.

• ~1500-2200°C: Sintering of carbides (WC-Co), advanced ceramics, refractory metals.

• 2200°C+: Specialized applications in research and advanced materials production.

Conclusion

There is no single “vacuum furnace temperature.” The range is primarily determined by the choice of heating element and hot zone materials. When specifying a furnace, you must define:

1. Your maximum required process temperature.

2. The material you are processing (to ensure compatibility).

3. Your required cooling rate (gas quench capability).

4. The necessary vacuum level for your application.

For the majority of industrial heat treating and brazing, furnaces with molybdenum hot zones (up to 1300-1450°C) or graphite hot zones (up to 1800-2300°C) are most common.
