Vacuum Hardening Furnace Applications

---

What is a Vacuum Hardening Furnace?

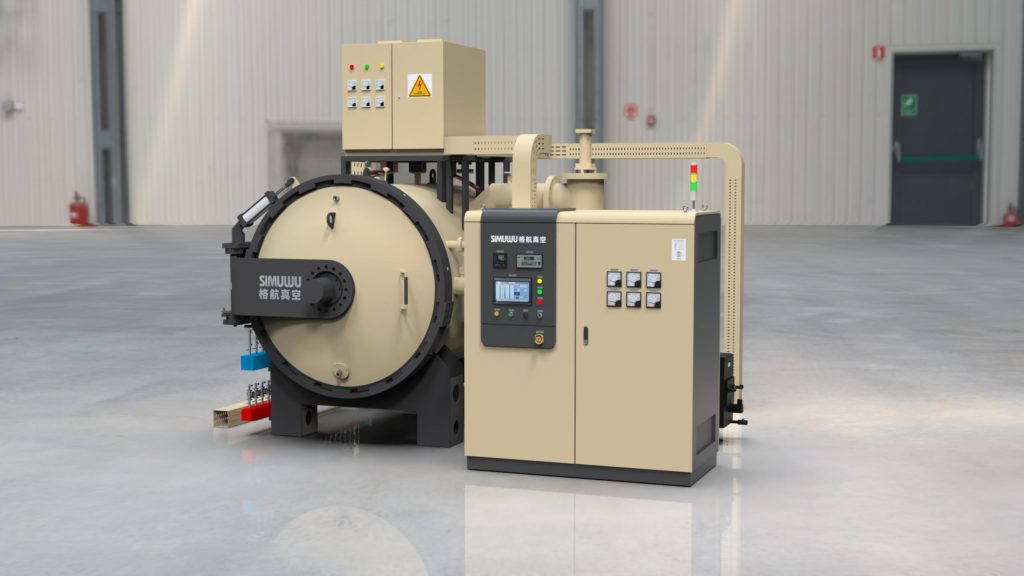

A vacuum hardening furnace is an industrial furnace used for hardening heat treatments like quenching and tempering of metal workpieces (primarily steel) in a high vacuum or controlled atmosphere environment. Its core feature is that the workpiece does not come into contact with oxygen during the process, thereby avoiding surface defects such as oxidation and decarburization, and yielding a bright, clean, high-quality surface.

Core Application Fields

Due to their exceptional processing quality, vacuum hardening furnaces are widely used in industries with extremely high requirements for part performance, precision, and appearance:

1. Tool and Mold Manufacturing

Typical Parts: Stamping dies, plastic molds, die-casting dies, cutting tools (e.g., milling cutters, drill bits), measuring tools.

Key Advantages:

No Decarburization: Maintains the hardness and sharpness of mold edges, extending service life.

Low Distortion: Uniform and relatively slow vacuum heating, combined with high-pressure gas quenching, minimizes thermal stress and distortion, reducing subsequent finishing costs.

Bright Surface: Parts can be used directly or require minimal polishing.

2. Aerospace Industry

Typical Parts: Engine turbine blades, gears, drive shafts, landing gear components, various high-strength structural parts.

Key Advantages:

Handles High-Performance Materials: Capable of processing oxidation-sensitive materials like superalloys, titanium alloys, and high-strength stainless steels.

High Fatigue Strength: Clean surfaces free of scale and decarburization layers improve the fatigue limit and reliability of components.

Excellent Reproducibility: Precise control of process parameters ensures consistent part performance batch-to-batch, meeting stringent aerospace standards.

3. Automotive Industry (Especially High-Performance and New Energy Vehicles)

Typical Parts: Engine camshafts, transmission gears, synchronizer rings, CVT components, steering system parts, new energy vehicle motor shafts and gears.

Key Advantages:

Improved Wear Resistance and Strength: Achieves a hard, wear-resistant surface with a tough core.

Controlled Distortion: Crucial for precision gears where micron-level distortion control is essential; vacuum heat treatment is the preferred method.

Energy Efficiency: More energy-efficient and environmentally friendly compared to some carburizing processes for certain applications.

4. Medical Devices

Typical Parts: Surgical instruments (scissors, forceps, bone drills), implants (e.g., joint replacements), dental instruments.

Key Advantages:

Biocompatible Surface: Oxidation-free and contamination-free surfaces are suitable for direct human implantation.

High Cleanliness: Meets extreme cleanliness requirements of the medical industry.

Preserves Fine Features: Excellent for complex shapes and sharp cutting edges.

5. Precision Machinery and Bearing Industry

Typical Parts: High-precision bearings (e.g., aerospace bearings), ball screws, precision gears, hydraulic components.

Key Advantages:

Dimensional Stability: Minimal distortion ensures ultra-high part precision.

High Wear Resistance & Long Life: Provides optimal comprehensive mechanical properties for bearings and similar parts.

6. Scientific Research & High-End Prototyping

Application: Used for heat treatment research on new materials (e.g., metallic glass, composites) and prototyping of small-batch, high-demand components.

Primary Process Applications (Operations performed within the furnace)

Vacuum Quenching: The primary application. The workpiece is heated to the austenitizing temperature and then cooled by forced circulation of high-purity inert gases (e.g., nitrogen, helium, argon) via High-Pressure Gas Quenching, or by using vacuum quenching oil for Oil Quenching.

Vacuum Tempering: Tempering performed under vacuum or in an inert gas atmosphere to relieve quenching stresses and achieve required toughness while maintaining a bright surface.

Vacuum Annealing: Used for stress relief, hardness reduction, grain refinement, also resulting in a bright surface.

Vacuum Brazing: Joining components using a filler metal with a lower melting point than the base metal in a vacuum environment, often used for complex aerospace structures.

Vacuum Sintering: Combined with carbide and powder metallurgy processes to sinter high-density, high-performance alloy materials.

Summary of Technical Advantages

High-Quality Surface: Oxidation-free, decarburization-free, bright surface, saving on cleaning and subsequent machining costs.

Superior Performance: Maximizes the inherent properties of materials, resulting in excellent fatigue strength, wear resistance, and overall mechanical properties.

Minimal Distortion: Uniform heating and controlled cooling typically result in distortion only 1/5 to 1/10 of that from salt bath or atmosphere treatments.

Environmentally Friendly & Safe: No need for protective atmospheres (like endothermic gas), no open flames, no combustion exhaust pollution, better working environment.

High Automation: Process is program-controlled, ensuring excellent repeatability and consistency.

Process Flexibility: Capable of multi-stage combined treatments (e.g., quenching + tempering).

Limitations

High Capital Investment: Initial purchase and maintenance costs are significantly higher than conventional heat treatment furnaces.

Operating Costs: High-purity gases and electricity consumption lead to higher per-load processing costs.

Cooling Rate Limitations: Although high-pressure gas quenching technology is advancing, its cooling speed may still not match brine or oil quenching for very large cross-sections or parts requiring extremely high hardenability.

Development Trends

Higher pressure gas quenching (e.g., above 20 bar) to handle larger dimensions and more demanding materials.

More intelligent control systems, integrated with simulation software for process prediction and optimization.

Multi-functional integration, combining carburizing, nitriding (e.g., plasma nitriding) into vacuum furnaces for “all-in-one” processing.

In summary, the vacuum hardening furnace is a cornerstone of modern high-end precision manufacturing. While not the most economical choice, it is an indispensable solution in fields demanding ultimate performance, minimal distortion, highest reliability, and superior surface quality. Its application is directly related to the service life, safety, and technological advancement of high-end equipment.
