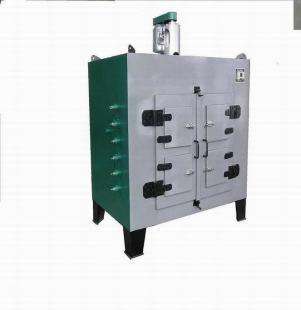

Aluminum forging furnace
Aluminum forging furnace, mainly by the furnace, air deflector, circulating fan, heating elements, furnace doors, and electrical control part. The furnace for the furnace door structure (4 or 6 wickets), work can open a wicket, used up after the material off and then open another wicket.
Aluminum forging furnace for the furnace door structure, while feeding the material out of circulation continuous operation, less heat loss and good insulation properties easy to operate.
Aluminum alloy forging furnace Uses: This equipment is suitable for aluminum alloy aluminum rod stamping heat treatment.
Aluminum forging furnace for aluminum alloy, aluminum rod in the heat treatment before stamping. Aluminum forging furnace mainly by the furnace, air deflector, circulating fans, heating elements, furnace doors, and electrical control part. The furnace is a multi-furnace door structure, when working, a small door can be opened. After it is used up, the material is closed and then another small door is opened. The material circulation is continuously operated, and the heat loss is less and the thermal insulation performance is easy to operate. Electrical appliances SCR, and motion control and other components. Temperature control using digital intelligent temperature controller on the furnace heating zone to achieve continuous PID control. The furnace body is welded with the steel frame inside and outside the three-dimensional frame, the main structure of the furnace from the three-dimensional structure of the inner, outer three layers, the furnace two layers of air deflector are made of stainless steel, so that the inner and outer plates to form a space between This space is filled with aluminum silicate fiber for thermal insulation material. The wind deflector installation buckle hanging for easy installation and maintenance, the top of the furnace centrifugal fan, the centrifugal fan in the furnace under the guidance of the flow system can effectively hot air circulation
