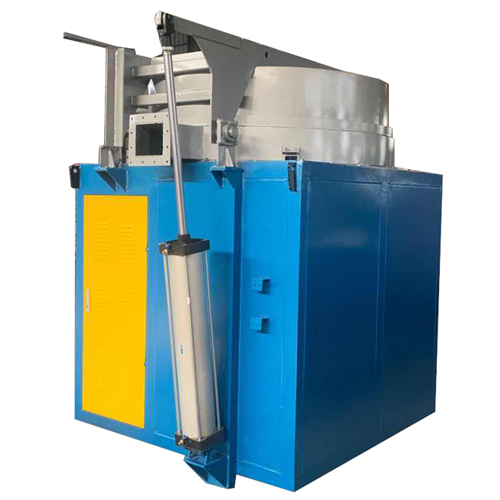

QPQ series Salt Bath Liquid NItriding Furnace

QPQ series Salt Bath Liquid NItriding Furnace Introduction

QPQ series Salt Bath Liquid NItriding Furnace is the national standard energy-saving cycle operation furnace, the equipment conforms to the aviation standard HB5354,HB5452, the national military standard GJB509A and AMS2750D.Super energy-saving structure, saving 30% of electricity.It is mainly used for nitriding, oxidation, carburization and co-carburization of iron sheet-iron pots, cast-iron pots, molds, rollers, crankshafts, valves and various mechanical parts.

Technical parameters

QPQ Salt Bath Liquid Nitriding Furnace
Name	Model	Effectiveworking zone dimension(mm)	Loading Weight (kg)	Output
QPQ Salt Bath Liquid Nitriding Furnace	QPQ-6065	D600*H650mm	80~100 kg	3batches/8hours
	QPQ-6010	D600*H1000mm	150~200 kg	3batches/8hours
	QPQ-8012	D800*H1200mm	400~500 kg	3batches/8hours
	QPQ-8015	D800*H1500mm	600~700 kg	3batches/8hours
	QPQ-1018	D1000*H1800mm	800~1000 kg	3batches/8hours
	QPQ-1218	D1200*H1800mm	1000~1200 kg	3batches/8hours
	QPQ-X	Custom made	Custom made	Custom made
