Vacuum Furnace Customization Guide: 6 Core Strategies to Improve Heat Treatment Process Reliability

---

For demanding industries such as aerospace, automotive, and power generation, standard vacuum furnace equipment often falls short of meeting high-precision heat treatment requirements. Even minor performance gaps can directly impact component quality and increase scrap rates.

Vacuum furnace customization is no longer an optional extra—it is a critical path to achieving process controllability, batch-to-batch consistency, and long-term cost reduction. Based on over 50 years of heat treatment experience, this article summarizes six proven customization strategies to help you systematically improve vacuum furnace design and enhance heat treatment process reliability and efficiency.

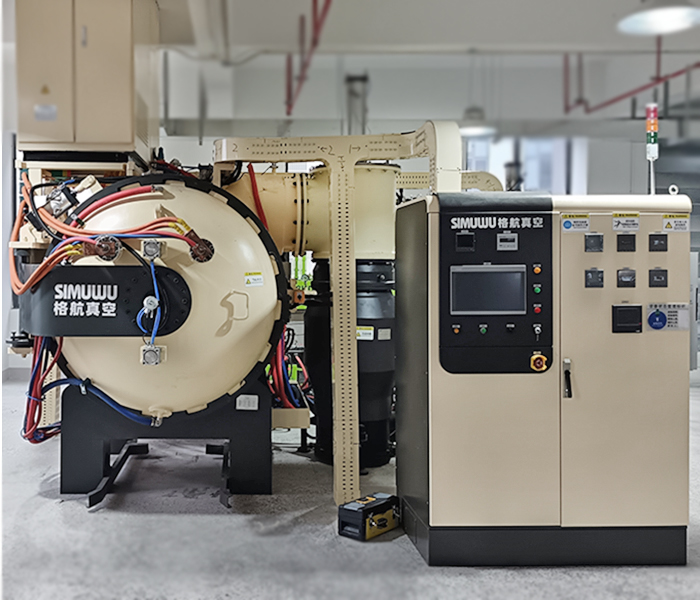

Why Is Vacuum Furnace Customization Necessary?

Standard vacuum furnaces balance functionality, cost, and ease of use for most conventional applications. However, for demanding parts such as single-crystal turbine blades—which require extremely tight temperature uniformity, precise quenching speed control, and near-perfect batch repeatability—standard configurations often have significant shortcomings.

The most effective approach is to assess specific process risks and upgrade the critical components that have the greatest impact. With controlled investment, this can drive scrap rates close to zero and achieve reliability well above industry standards.

Strategy 1: Advanced Quenching Control

Quenching repeatability directly affects part quality. Conventional pressure control is far from sufficient. To achieve true process consistency, your vacuum furnace should include:

• Proportional valve control for precise gas flow regulation, rather than merely maintaining a set pressure

• Fan initial speed management to adjust convective heat transfer intensity based on part shape and mass

These advanced cooling control capabilities are the technical foundation for consistent metallurgical results and component integrity.

Strategy 2: Automated Restart Logic

In production environments with multiple furnaces running and minimal staffing, a single unplanned power outage can scrap an entire batch.

A key detail for improving vacuum furnace reliability is adding dedicated PLC restart logic. This system can:

• Accurately record the state at the moment of interruption

• Verify all safety conditions upon recovery (atmosphere, temperature, interlocks, etc.)

• Automatically arrange a safe restart when conditions are met

This significantly reduces product scrap risk, protects equipment, and stabilizes production capacity.

Strategy 3: Advanced Hot Zone Design

The hot zone is the heart of a vacuum furnace. Its material and structural choices directly affect operational efficiency and equipment lifespan.

Standard furnaces often use thinner insulation layers and lower-cost materials to reduce initial investment. In contrast, a high-performance vacuum furnace design should include:

• Thicker insulation and optimally placed air gaps

• High-quality insulation materials (e.g., molybdenum, graphite felt, carbon fiber reinforced carbon composites)

• High-performance fasteners specifically designed for high-stress thermal cycling

These investments not only reduce heat loss, improve temperature uniformity, and lower energy consumption—they also extend hot zone life and reduce downtime and maintenance costs. The choice of hot zone determines whether you are paying for short-term price or investing in long-term reliability.

Strategy 4: High-Density Sensor Network

The accuracy, quantity, and placement of sensors are your “eyes” into the furnace’s real-time condition. Standard configurations use a limited number of sensors to monitor only basic parameters.

Enhancing sensor integration by adding more sensors in the hot zone and at other critical locations allows you to:

• Capture subtle variations in temperature distribution, heat flow, gas pressure, and quenching speed

• Enable real-time process adjustment and early detection of equipment issues

• Provide data for predictive maintenance

• Significantly improve process traceability for rapid root-cause analysis

A denser sensing network is a prerequisite for precise control and stable consistency.

Strategy 5: Centralized Preventive Control System

The control system for a modern vacuum furnace should do more than record data—it should actively protect process quality.

A deeply integrated centralized SCADA system and PLC architecture provides:

• Automated compliance control: continuously tracks process parameters, alerts on deviations, and automatically isolates non-conforming batches to prevent defective parts from moving downstream

• Heating element condition monitoring: tracks resistance changes in real time and automatically stops heating upon early signs of abnormal heating system behavior, protecting both workpieces and equipment

With complete signal logging, most problems can be diagnosed remotely in minutes rather than hours.

Strategy 6: Variable Frequency Drive Integration

This is a clearly high-return-on-investment upgrade. Using a variable frequency drive (VFD) in the vacuum pumping system allows motor speed to be adjusted according to process needs.

Real-world data makes the difference clear:

• Without VFD: fan bearings require replacement every 1–2 years, and motor failures are common

• With VFD + logic‑based speed reduction: bearing replacement intervals extend to 10–20 years, with no motor issues reported

By reducing mechanical stress and heat generation, this upgrade significantly extends auxiliary equipment life and reduces unplanned downtime.

How to Begin Your Vacuum Furnace Customization Journey?

Comprehensive customization is not the only path. For most companies, a more practical approach is phased upgrades:

1. Start by improving hot zone insulation and installation methods

2. Add or reposition sensors at key locations

3. Gradually introduce advanced control software and data analysis capabilities

Another efficient option is to partner with a specialized commercial heat treater that has proven expertise in implementing these improvements at industrial scale. This allows you to achieve high precision and repeatability with lower capital investment and in less time than in‑house retrofitting.

Conclusion: Achieving reliable, repeatable, and high-quality heat treatment results requires an integrated view of vacuum furnace design, process requirements, and operating costs.

Remember these six proven customization measures:

1. Advanced quenching control

2. PLC automated restart logic

3. High-performance hot zone design

4. High-density sensor network

5. Centralized preventive control system

6. Variable frequency drive integration

Start by identifying which single customization delivers the greatest reliability gain for your operation. That is the key to enhancing equipment performance, lowering long-term costs, and building a competitive advantage in demanding markets.
