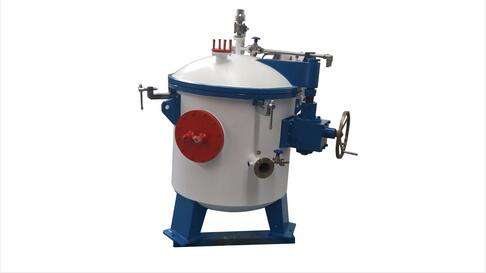

Laboratory temperature furnace
Laboratory temperature furnace applications:
Laboratory high temperature furnace is mainly used in sintering and graphitization of carbon materials, sintering of carbon fiber ropes, high temperature treatment of battery anode materials, graphite powder, high temperature treatment and purification of carbon nanotubes, carbon fiber carbonization, contact materials, precision ceramics, high temperature components High-temperature sintering, powder metallurgy materials, tungsten carbide and other products of high-temperature sintering, other materials can be sintered in the carbon environment and melting.
Laboratory temperature furnace features:
Ultra-high temperature furnace within 3000 ℃, can fully meet the sintering of various materials, carbonization, graphitization and other treatment.
High-precision imported infrared thermometer to ensure temperature accuracy.
The use of digital display intelligent temperature control system, automatic temperature measurement and control process to complete the high-precision, the system can be given a heating curve heating, and can store a total of 40 different sections of 40 heating curve.
Equipment has a measurement record, 10,000 times the data can be recorded, the data can be recalled through the historical curve.
With USB interface, the recorded historical data can be saved to the U disk at any time.
Internal circulation of pure water cooling system; digital water temperature monitoring system.
Furnace conversion using high-performance IF contactors;
Comprehensive PLC water, electricity, gas automatic control and protection system.
Very good SCR overload, short circuit and false trigger, and overvoltage protection.
The whole machine multi-channel data acquisition, and display and operation in the man-machine interface, the whole operating parameters at a glance, easy to operate.
Furnace: double-layer water-cooled structure, can be negative pressure vacuum pumping; with vacuum pipe interface, an increase of vacuum damage valve, inflatable hole.
