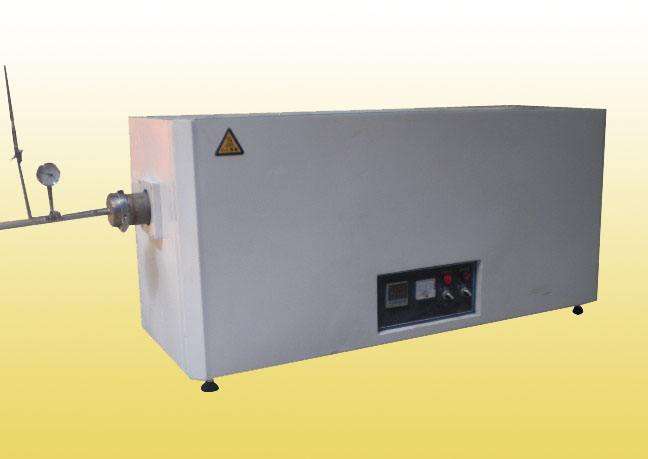

Pre-vacuum tube atmosphere furnace
Custom processing: Yes Maximum voltage: 380 (V)
Power: 10000 (W) Rated temperature: 1350 (℃)
Pre-evacuated tube atmosphere furnace main purposes: Suitable for all kinds of college laboratories, industrial and mining laboratories for chemical analysis, physical determination, and metal, ceramic sintering and melting, small steel and other product certification: ISO9001
The electric furnace adopts international advanced technology, our company independently developed a new high-performance energy-saving single temperature zone pre-evacuated tube atmosphere experimental electric furnace, in addition to single tube, double tube, horizontal, open tube experimental electric furnace .
Pre-vacuum tube atmosphere furnace features:
1, can choose to import a single set point or 30 programmable logic controller;
2, energy-saving ceramic fiber materials and double-layer structure, the appearance of the temperature can be reduced to room temperature, temperature range, easy to operate;
3, sealed and reliable, high overall performance indicators, leading in the country
4, optional configuration heat-resistant steel, quartz glass, corundum ceramics and other materials furnace tube,
5, optional: 30 programmable controller models, RS-485 serial port (available separately) to achieve computer communications and mechanical vacuum pump.
Mainly used in universities, research institutes, industrial and mining enterprises and other experiments and small batch production purposes. Safe, reliable, simple operation, high precision temperature control, good insulation effect, large temperature range, high temperature uniformity in the furnace, more temperature zones, optional atmosphere, vacuum furnace and so on.
Name Unit parameter
Power KW 15
Supply voltage V / phase 380V / 2 ± 10%, 50Hz ± 5%
The maximum temperature of 1200 ℃
Normal working temperature ℃ 1000
Furnace size mm diameter φ150 × 1000 mmL × W × H)
Tube material 310S stainless steel
Insulation material 1400 ceramic fiber
Heating element resistance wire
Heating heating on all sides
Control method SCR phase-shift regulator
Alarm protection over-temperature, sound and light alarm protection
Temperature Meter Intelligent temperature meter
Vacuum pump rotary mechanical pump
Ultimate vacuum pressure 10Pa
Furnace atmosphere nitrogen. Argon. Hydrogen
Light up safely
Flowmeter Glass rotor flowmeter 0.1-10L / min (2)
Thermocouple index K graduation
Temperature measurement furnace tube temperature
A13 steel shell material overall seal
Car body surface paint
Range of constant temperature mm ≥290
