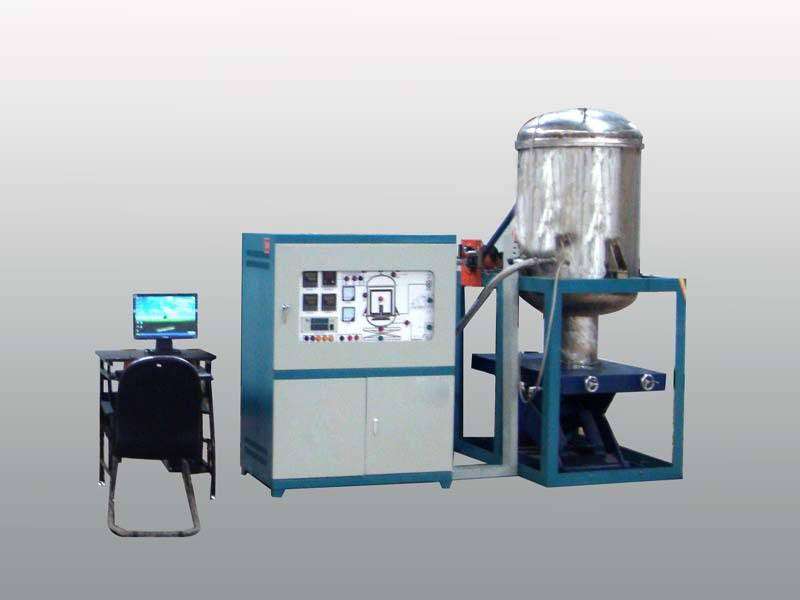

Vacuum atmosphere electric furnace
Vacuum atmosphere lifting furnace Features: Open the door way: side open, with a lock, the door can be rotated
1, control accuracy: ± 1 ℃ Furnace temperature uniformity: ± 1 ℃ (according to the size of the heating chamber).
2, easy to operate, programmable, PID self-tuning, automatic heating, automatic thermal insulation, automatic cooling, without duty; can be reprovisioned with computer communication through the computer operating electric furnace (start the electric furnace, stop the electric furnace, suspend heating, set the temperature curve, Curve storage, historical curves, etc.), software free details: computer control system.
3, warming fast (heating rate 1 ℃ / h to 40 ℃ / min adjustable).
4, energy-saving (Furnace made of imported fiber, high temperature, heat-resistant quench)
5, the furnace body by the fine spray-resistant acid and alkali, furnace and furnace isolation using air-cooled furnace wall temperature close to room temperature
6, double circuit protection (over temperature, overpressure, superfluous, paragraph even, power off, etc.)
7, furnace material imports of refractory materials, good insulation properties, high temperature resistance, emergency cold heat
8, the temperature category: 1200 ℃ 1400 ℃ 1600 ℃ 1700 ℃ 180O ℃ five
