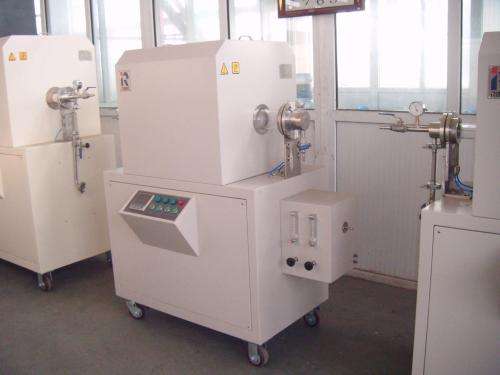

Vacuum tube test furnace
1200 degrees double temperature zone high temperature tube sintering furnace, furnace tube is a corundum tube, vacuum tube furnace rated temperature of 1000 ℃, 1100 ℃, 1200 ℃, 1400 ℃, 1600 ℃, 1700 ℃, 1800 ℃, using different heating elements , Complete model, simple operation, high precision temperature control, good insulation effect, large temperature range, high temperature uniformity in the furnace, more temperature zones, optional atmosphere, vacuum furnace and so on.
High-temperature tubular sintering furnace can be mainly used for high-temperature sintering, high temperature sintering experiment, material processing, universities, research institutes, industrial and mining enterprises to do high temperature sintering, atmosphere reduction, CVD experiment, vacuum Annealing and so on.
High temperature tube sintering furnace Product Description:
1.1 This tube furnace to silicon carbide rod, silicon molybdenum rod or resistance wire heating element, the temperature is generally above 1200 degrees with corundum tube. (Note: 1200 degrees can be used below)
1.2 Double-shell structure and 30-stage temperature control system, phase trigger, SCR control,
1.3 Furnace with alumina polycrystalline fiber material, double furnace shell with air cooling system, can quickly rise and fall of temperature, the furnace temperature field balance, the surface temperature is low, fast cooling temperature rate, energy saving and so on.
1.4 The use of international advanced technology, a single tube, double pipe, horizontal, open type, vertical, single temperature zone, dual temperature zone, three temperature zones and other tube furnace.
1.5 with safe, reliable, simple operation, high precision temperature control, thermal insulation effect, temperature range, high temperature uniformity of the furnace, the temperature zone and more, the atmosphere can be optional, such as vacuum furnace.
1, control accuracy: ± 1 ℃ Furnace temperature uniformity: ± 1 ℃ (according to the size of the heating chamber).
2, microcomputer control, easy to operate, programmable, automatic heating, automatic insulation, automatic cooling.
3, furnace tube corundum 99 ceramic.
4, stainless steel flange seal (double apron)
5, the furnace body by the fine spray-resistant acid and alkali, furnace and furnace isolation using air-cooled furnace wall temperature close to room temperature
6, double circuit protection (over temperature, over pressure, super flow, paragraph even, power failure, etc.)
7, imports of refractory materials, insulation performance, high temperature
8, the vacuum gauge vacuum 0 to 0.1Mpa
9, through a variety of gases (oxygen, nitrogen, argon, hydrogen, etc.)
10, temperature category: 1000 ℃ 1400 ℃ 1600 ℃ 1700 ℃ four
